Stop LFX from launching when opening the SDS200 software (for example in demo installations)

Stop LFX from launching when opening the SDS200 software (for example in demo installations)

Go to the folder C:\Program Files (x86)\Schiller\Application\SDS200\Settings\FactorySettings and find the SFF_DeviceSettings file.

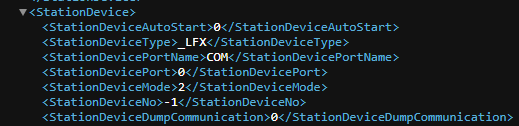

Open the SFF_DeviceSettings file with Notepad and locate at the end of the file the LFX settings section. Change the value for <StationDeviceAutoStart> from 1 to 0 and save the changes made to the SFF_DeviceSettings file.



When the SDS200 software is launched it will not automatically open LFX.
