Generic or customized field on AT-102 G2

Generic or customized field on AT-102 G2

To add a customize or generic field on the CARDIOVIT AT-102 G2 follow the below steps:

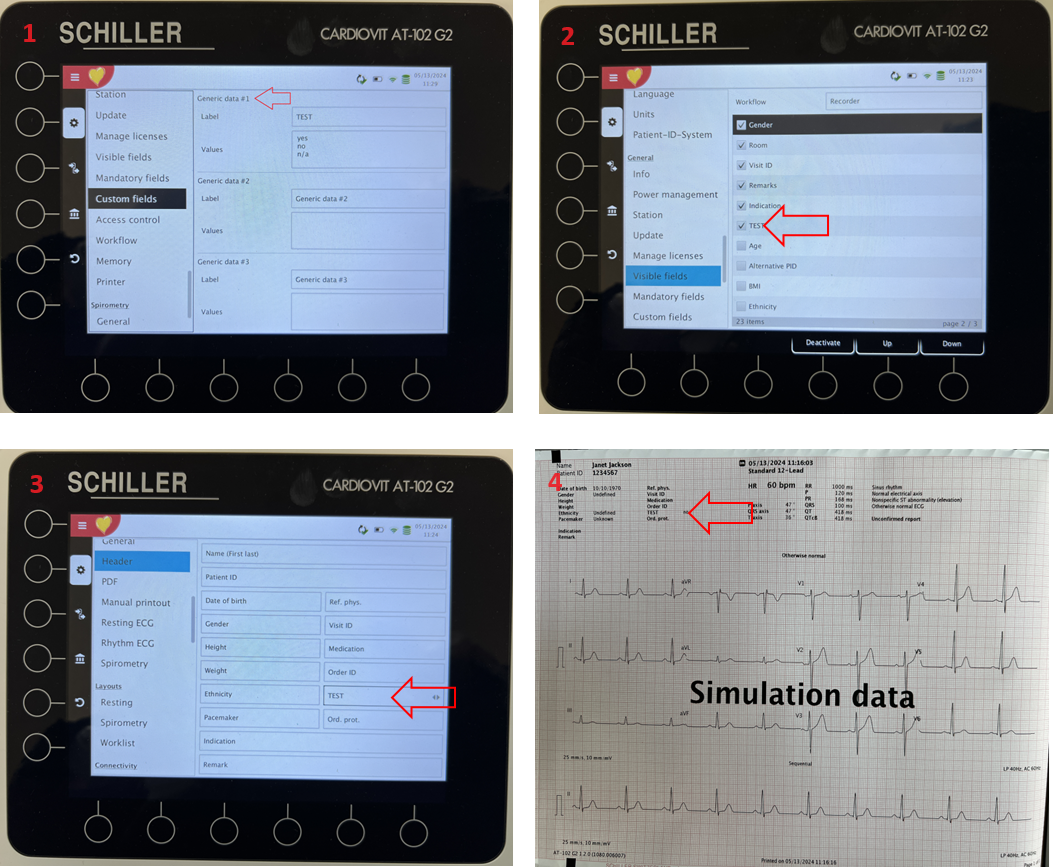

Go settings and scroll down up to Custom fields. On the right side of the screen fill the Label (name of the field) and the Values (options of down menu needed). Picture 1
Then go to Visible fields and check the box of the new field. Picture 2
To display the field (Generic) in the printed report go to Header and add the field Picture 3 & 4



To display the Generic field in the PDF file transmitted to Schiller Server, the following changes must be made:

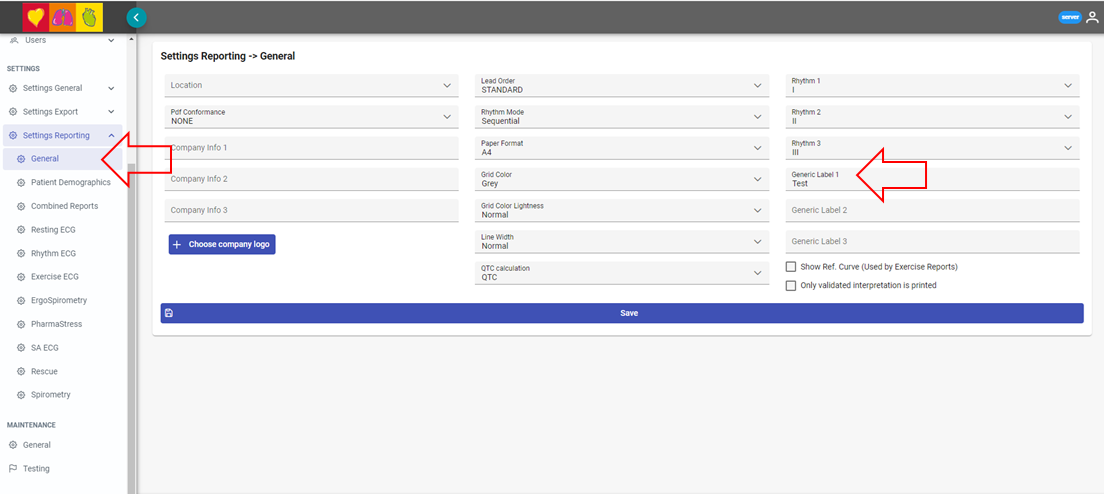

Go to Setting Reporting / General. Find the Generic Label field and write the same Label name and save.
