Connect Darwin2 to Schiller Server

Connect Darwin2 to Schiller Server

This is the link to the medilog webpage with instructions on how to configure the connectivity between Darwin and Schiller Server:

Configure Darwin
  • Open the Admin tool, switch to the "setup" tab and click on "extended settings"
  • Find the "SCHILLER Server integration" section
  • Enter the  Schiller Server address (e.g. http://www.myserver.com:8080)
  • If you entered non-default values for Username/Password/DeviceId then enter them here
  • Close the Admin-tool
  • Run Darwin
  • You can configure a recorder by double-clicking on one of the entries.
  • When you release a recording, a PDF is sent to Schiller Server. If SemaLibertyMobile is installed you can verify the PDF on http://www.myserver.com:8080/SemaLibertyMobile/

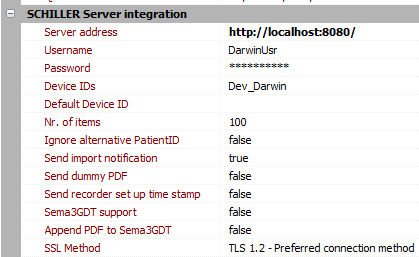

Example of how to configure the Darwin AdminTool settings:
  • Password = "DarwinPass" (e.g.)

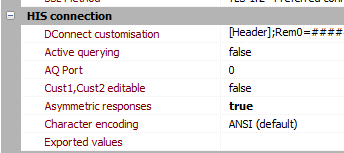

To test PDF reports are being sent to Schiller Server without a worklist, go to the "HIS connection" section and set "Asymmetric responses" to "true"








This will enable the "-> HIS" checkbox for releasing recordings.




Configure Schiller Server

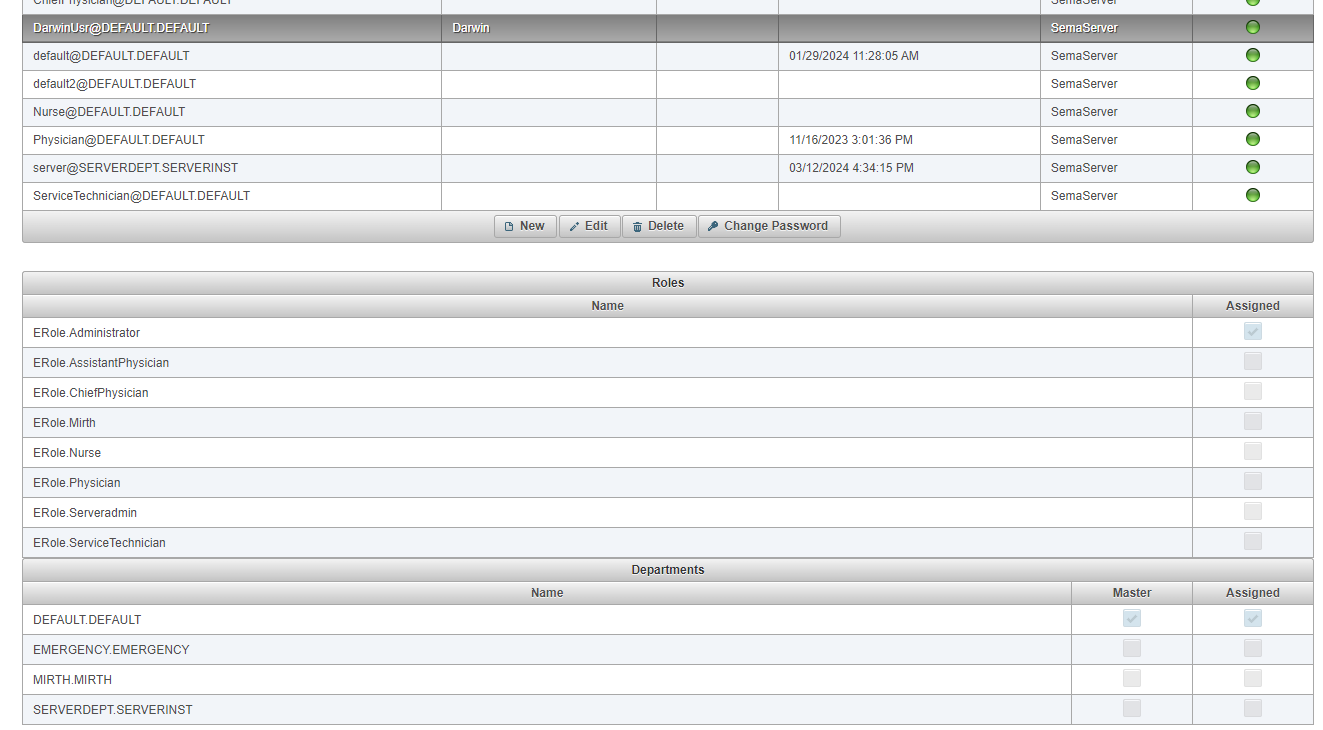

A new Darwin user has to be created in Schiller Server, such as the "DarwinUsr" shown in the example below.

  • Click on Usermanagement / Users
  • Click "New"
  • Username = "DarwinUsr" (e.g.)
  • Userinfo = "Darwin" (e.g.)
  • Password = "DarwinPass" (e.g.)
  • (you can use different values for the fields above, these are the default values which are preconfigured in Darwin)
  • Master Role = Administrator
  • Master Department = Default
  • Press "Apply"
  • Click Devices/Device List
  • Click "New"
  • Enter e.g. "Dev_Darwin" (you can also specify multiple device IDs each associated with a different user. Here's an example of how to set up such a configuration: "Dev101:UserA,Dev102:UserB")
  • Click "Apply"
